锚链 链经 ChainDia (mm) |
d (mm) |
L (mm) |
L1 (mm) |
B (mm) |
B3 (mm) |
D (mm) |
h (mm) |
试验负荷 TestingLoad/KN(tf) |
每套重量 Mass(kg) |
|||
| M1 | M2 | M3 |

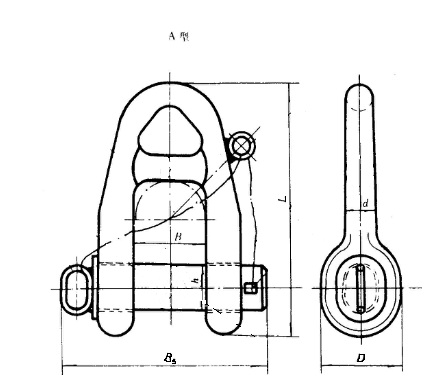

A型 TypeA |
B型 TypeB |
||||||||
| 38 | 56 | 395 | 375 | 150 | 372 | 113 | 80 |
406.0 (41.4) |
580.6 (59.2) |
812 (82.8) |
27.8 | 26 |
| 40 | 58 | 406 | 384 | 375 | 118 | 83 |
448.2 (45.7) |
640.4 (65.3) |
896.3 (91.4) |
31.2 | 29.9 | |
| 42 | 59 | 416 | 394 | 379 | 125 | 85 | - |
703.1 (71.7) |
980.7 (100) |
35.2 | 34 | |
| 44 | 62 | 427 | 401 | 396 | 130 | 88 | - |
768.8 (78.4) |
1079 (110) |
40.6 | 39.3 | |
| 46 | 64 | 438 | 410 | 401 | 136 | 90 | - |
836.5 (85.3) |
1167 (119) |
45.9 | 44.5 | |
| 48 | 67 | 458 | 429 | 160 | 421 | 141 | 92 | - |
908.1 (92.6) |
1275 (130) |
52.4 | 50.6 |
| 50 | 70 | 470 | 440 | 430 | 148 | 95 | - |
980.7 (100) |
1373 (140) |
59.4 | 56.9 | |
| 52 | 73 | 490 | 460 | 170 | 450 | 153 | 98 | - |
1059 (108) |
1481 (151) |
66.9 | 64.2 |
| 54 | 76 | 504 | 472 | 457 | 161 | 101 | - |
1138 (116) |
1589 (162) |
74.3 | 71.5 | |
| 56 | 78 | 524 | 491 | 180 | 477 | 165 | 104 | - |
1216 (124) |
1706 (174) |
83 | 80 |
| 58 | 81 | 538 | 503 | 492 | 172 | 108 | - |
1294 (132) |
1814 (185) |
92.5 | 89.3 | |
| 60 | 84 | 549 | 513 | 500 | 177 | 111 | - |
1383 (141) |
1942 (198) |
102 | 98.7 | |
| 62 | 87 | 561 | 525 | 508 | 184 | 115 | - |
1471 (150) |
2059 (210) |
113 | 109 | |
| 64 | 90 | 594 | 556 | 200 | 537 | 189 | 119 | - |
1559 (159) |
2187 (223) |
123 | 119 |
| 66 | 92 | 606 | 566 | 545 | 195 | 122 | - |
1657 (169) |
2314 (236) |
136 | 131 | |
| 68 | 95 | 617 | 576 | 552 | 200 | 125 | - |
1746 (178) |
2452 (250) |
148 | 143 | |
| 70 | 98 | 628 | 586 | 570 | 207 | 127 | - |
1844 (188) |
2579 (263) |
161 | 154 | |
| 73 | 103 | 645 | 601 | 582 | 215 | 132 | - |
1991 (203) |
2795 (285) |
182 | 175 | |
| 76 | 106 | 663 | 615 | 594 | 223 | 137 | - |
2148 (219) |
3011 (307) |
205 | 197 | |
| 78 | 109 | 675 | 625 | 606 | 230 | 140 | - |
2256 (230) |
3158 (322) |
222 | 213 | |
| 81 | 112 | 697 | 641 | 624 | 242 | 146 | - |
2412 (245) |
3383 (345) |
250 | 239 | |
| 84 | 115 | 716 | 655 | 639 | 251 | 152 | - |
2579 (263) |
3609 (368) |
279 | 268 | |
| 87 | 118 | 735 | 670 | 648 | 259 | 158 | - |
2746 (280) |
3854 (393) |
311 | 298 | |
| 90 | 122 | 753 | 684 | 660 | 262 | 164 | - |
2922 (298) |
4098 (417) |
345 | 332 | |
