超高分子量聚乙烯纤维缆绳
Ultra High Molecular Weight Polyethylene Fiber Rope
一、描述Description
该缆绳是由超高分子量聚乙烯纤维制造，是由各六个分别是“S”和“Z”捻向的绳股空心编织而成，让绳子不会发生旋转，特点是强力。
This rope is made by the ultra-high molecular weight polyethylene fiber,It’s woven by separate six“S”and“Z”stands,Let the rope will not occur rotating,Its characteristic is strong.
二、性能Performance
1）材料：超高分子量聚乙烯纤维 Material: Ultra-high molecular weight polyethylene(UHMWPE)

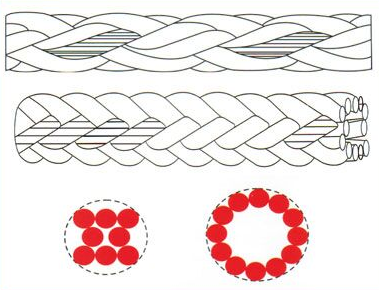

2）结构：八、十二股编织 Construction:8、12 strand braided
3）颜色：黄色，其他颜色 Standard color:Yellow, other colours:red,blue,green,orange and so on
4）比重：0.96浮水 Approx.Spec.Density:0.96 Floating
5）熔点：145°C Melting Point: 145°C
6）耐磨性：非常好 Vabrasion Resistance:Excellent
7）抗紫外线：好 U.V.resistance:Good
8）抗化学腐蚀性：非常好 Chemical corrosion resistance: Excellent
9）使用环境：最大70°C Temperature resistance: 70°C max continuous
10）每卷长度：220m Coil length: 220m
11）结强力损失：±10% Spliced strength: ±10%
12）重量和长度误差：±5% Weight and length tolerance: ±5%
13）吸水率：无 Water absorption:None
14）超高强：同等直径时，强度和钢缆相同 Stronger:under the same diameter,the strength is the same as the wire rope
15）应用范围：海洋工程、系泊、港口拖带、海军装备、国防军队装备、航天航空、电力通讯、大型精密物件吊装、体育器材等 Application:offshore,mooring,port towing, naval equipment, military equipment,aerospace, electrical communication,large precision object sling,sports equipment,etc.
三、参数表Parameter Table
|
直径DIA |
周长CIR |
重量Weight |
破断强力 |
||
|
MM |
INCH |
INCH |
KGS/100M |
LBS/100FT |
Breaking Strength |
|
6 |
1/4 |
3/4 |
2.3 |
1.5 |
3.16 |
|
8 |
5/16 |
1 |
4.0 |
2.5 |
5.18 |
|
10 |
13/32 |
1-1/4 |
6.1 |
3.7 |
7.94 |
|
12 |
15/32 |
1-1/2 |
8.7 |
5.3 |
13 |
|
14 |
9/16 |
1-3/4 |
11.7 |
7.1 |
15 |
|
16 |
5/8 |
2 |
15.1 |
9.2 |
19.6 |
|
18 |
23/32 |
2-1/4 |
19 |
11.6 |
24.3 |
|
20 |
13/16 |
2-1/2 |
23.2 |
14.3 |
30.2 |
|
22 |
7/8 |
2-3/4 |
28.1 |
17.2 |
35.9 |
|
24 |
15/16 |
3 |
33.1 |
20.4 |
42.1 |
|
26 |
1-1/32 |
3-1/4 |
38.4 |
24 |
48.3 |
|
28 |
1-1/8 |
3-1/2 |
44.5 |
27.8 |
55.1 |
|
30 |
1-3/16 |
3-3/4 |
50.6 |
31.8 |
61.9 |
|
32 |
1-1/4 |
4 |
57.5 |
36.2 |
70.3 |
|
34 |
1-11/32 |
4-1/4 |
64.8 |
40.8 |
77.8 |
|
36 |
1-7/16 |
4-1/2 |
72 |
45.8 |
84.2 |
|
38 |
1-1/2 |
4-3/4 |
79.8 |
51 |
93.6 |
|
40 |
1-19/32 |
5 |
88.1 |
56.5 |
102 |
|
42 |
1-21/32 |
5-1/4 |
95.5 |
62.2 |
111 |
|
44 |
1-21/32 |
5-1/4 |
106 |
68.3 |
118 |
|
48 |
1-7/8 |
6 |
125 |
81.3 |
138 |
|
50 |
2 |
6-1/4 |
135.4 |
88 |
146 |
|
52 |
2-1/16 |
6-1/2 |
146 |
95.3 |
159 |
|
56 |
2-1/4 |
7 |
169 |
111 |
183 |
|
60 |
2-3/8 |
7-1/2 |
193 |
127 |
205 |
|
64 |
2-1/2 |
8 |
220 |
144 |
230 |
|
68 |
2-11/16 |
8-1/2 |
248 |
163 |
256 |
|
72 |
2-7/8 |
9 |
278 |
182 |
285 |
|
76 |
3 |
9-3/8 |
309 |
204 |
315 |
|
80 |
3-5/32 |
10 |
343 |
225 |
355 |
|
88 |
3-7/16 |
11 |
417 |
272 |
429 |
|
96 |
3-13/16 |
12 |
497 |
324 |
510 |
